Upgrade your Audi with APPplay smartphone interface. APPplay support multimedia via USB, CARPLAY & camera to your existing system.
You can run apps from your Phone via CarPlay without touching your Phone. You can control APPplay via the original RNS-E and via voice control (Siri).
Example video
Features
- Control via original RNS-E
- Control via voice (Siri)
- Run navigation apps like; Google maps, TomTom & Waze
- Play music apps like; Spotify, Podcast, Music
- Making phone calls and listening to your messengers
- Rear camera input
- Original button support
- Original microphone support
- 2 Year warranty & Support
APPplay control
EXCLUSIVE APPplay FEATURES
Features:
- Run apps like; Spotify / Flitsmeister / Apple Maps / Waze / Google maps
- Hands-free phone and messaging
- Siri Voice Control
- Music & video playback via USB
- Bluetooth pairing option available
- Wireless CARplay function via Wifi
- Integrated Audio control with equalizer
- Analog audio output (via RCA or 3.5mm jack)
- Support left & right hand drive cars
- Software updates via USB
APPplay main screen
APPplay setting menu
APPplay media player menu
EXCLUSIVE VIDEO INTERFACE FEATURES
Features:
- OEM button support
- Rear camera input (CVBS - NTSC)
- Simulate OEM TV-tuner level
NAVconnect OEM Button
NOTES
- Please check the tab extra information
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"
DISCLAIMER
Apple, iPod, iPhone, iTunes, CarPlay and the CarPlay logo are registered trademarks of Apple Inc., registered in the U.S. and other countries.Google Maps, Waze
and Talk to Google are registered trademarks of Google Inc.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
The interface inserts audio & video signals into the infotainment.
VIDEO OUTPUT
Video goes via CVBS (NTSC)
CONTROL
You can control APPplay via original RNS-E controller
SCREEN

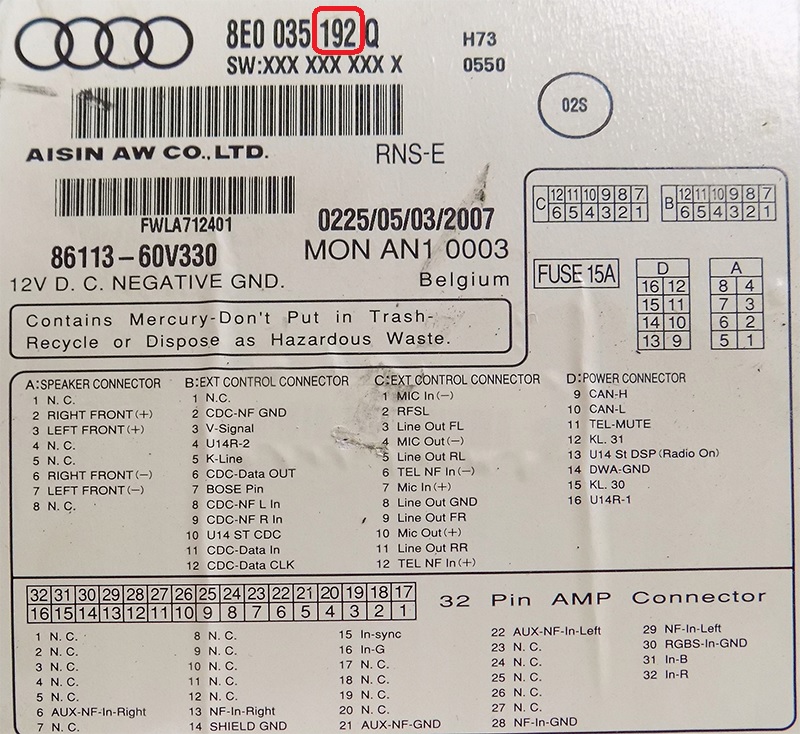

Interface is compatible with RNS-E NON LED (not compatible with high glossy finish RNS-E systems) - HW192
OPEN HU
Not need to open the monitor
FRONT CAMERA
Not available
OEM REAR CAMERA
Not compatible with original camera
GUIDELINES
Not available
iPAS
iPAS option is not available (moveable grid lines)
PIP
PiP option is not available for original parking sensor overlay (Picture in Picture)
REAR SELECT CAMERA INPUT
Interface will not respond on CAN, please use the rear detection wire.
INSTALLATION
We recommend that the installation will be performed by a qualified specialist
EXTRA NOTE
Video in motion included.
Rear camera input must be coded via diagnose when installing aftermarket camera.
Not compatible with OEM Rear camera
OEM TV-tuner must not be installed
MEDIA PLAYER
Media player support the following files:
MUSIC
MP3
VIDEO
MP4
MEDIA PLAYER
Media player support the following files:
MUSIC
MP3
VIDEO
MP4
ANDROID AUTO
Your Phone must be compatible with Android AUTO & Androi Auto app must be available in your county.
An Android phone running Android 5.0 (Lollipop) and up with a data plan. For best performance, we recommend Android 6.0 (Marshmallow) and up. You can check your phone’s software version by looking at the About Device section under Settings
Please check the following link for more info about Android Auto:
