Audi MMI 2G (High & Basic) Bluetooth Carkit interface (BT/USB/SD/AUX)

DESCRIPTION

The Bluetooth car kit interface simulates the CD-changer of Audi MMI 2G via Fiber Optical system (MOST). Due to the interface it is possible to control the telephone through the original radio or navigation system and the steering wheel control buttons of the car. The address book and telephone numbers will be displayed on the radio/navigation display. The car kit is equipped with the latest generation Bluetooth chipset which enables the most modern telephones to connect through Bluetooth with the original system.

Besides the Bluetooth car kit it has also the possibility to play music via bluetooth streaming, USB, SD-card and AUX.

Features

- Carkit hands-free function via original system

- Phone book support (see table)

- Steering wheel button support

- iD3 tag support (see table)

- Bluetooth Audio streaming support

- USB support (MP3 & WMA)

- SD-card support (MP3 & WMA)
- App audio support (music & navigation)
- Easy menu for music & menu browsing
- Phone charging via USB (max 300mA)

- Support control functions like; PLAY, PAUSE, NEXT, PREV, FF, REW

EXCLUSIVE INTERFACE FEATURES

Vehicle Integration:

- Controls via the original steering wheel control buttons

- Controls via the MMI system

- Navigate through phone book via MMI and steering wheel control buttons

- Accept and reject incoming calls and terminate calls via MMI and steering wheel control button

- Display of conversation on navigation display

- Volume adjustment via steering wheel control buttons and Comand system

- Automatic mute switch/support

- Audio of conversations via the original audio system

- Display of strength of signal and network in navigation display*

- Scrolling through address book via MMI and steering wheel control buttons

Telephone:

- Address book synchronization

- Access to Telephone lists

- Search for contact via A-Z search function

- Full conversion to digital signal of the microphone level

- Answer also 2ndcall

- Digital Sound Processor with echo- and noise suppression

- Extensive volume control (mic. Volume/output volume/etcetera)

- Menu missed calls

- Menu repeat numbers

- Menu received calls

- Menu active dial list

- Menu address book

Media:

- A2DP audio streaming via Bluetooth

- AVRCP control of the telephone via the original buttons of the Comand system**

- USB support (up to 32GB)

- SD-card support (up to 32GB)

- AUX input via 3.5mm jack

FIS Display MMI:

Steering Wheel controls:

NOTES

- We recommend that the installation will be performed by a qualified specialist

- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"

Compatibility

A4 (B8/8K)

2007-2009

Note: OEM BT module must be disconnected icm with MMI 2G Basic, MMI basic does not suppurt phone book
SW Commands
Head-unit
MMI 2G High & MMI 2G Basic
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

A5 (B8)

2007-2009

Note: OEM BT module must be disconnected icm with MMI 2G Basic, MMI basic does not suppurt phone book
SW Commands
Head-unit
MMI 2G High & MMI 2G Basic
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

A6 (4F)

2004-2009

Note: OEM BT module must be disconnected icm with MMI 2G Basic, MMI basic does not suppurt phone book
SW Commands
Head-unit
MMI 2G High & MMI 2G Basic
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

A8 (4E)

2002-2009

Note: OEM BT module must be disconnected icm with MMI 2G Basic, MMI basic does not suppurt phone book
SW Commands
Head-unit
MMI 2G High & MMI 2G Basic
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

Q7 (4L)

2006-2009

Note: OEM BT module must be disconnected icm with MMI 2G Basic, MMI basic does not suppurt phone book
SW Commands
Head-unit
MMI 2G High & MMI 2G Basic
Bluetooth carkit
Bluetooth streaming
Phone book
ID3-tag
USB input
SD-input
AUX input
iPod input

Extra Information

COMPATIBILITY

Head-unit

Suitable for the following radio- navigation system:

Radio system

Firmware

Notes

MMI 2G High (color screen)

Firmware 3640 or higher

Support phone book list

Support ID3 tag

MMI 2G Basic (monochrome screen)

Firmware 0410 or higher

Not support phone book list.

Support ID3 tag

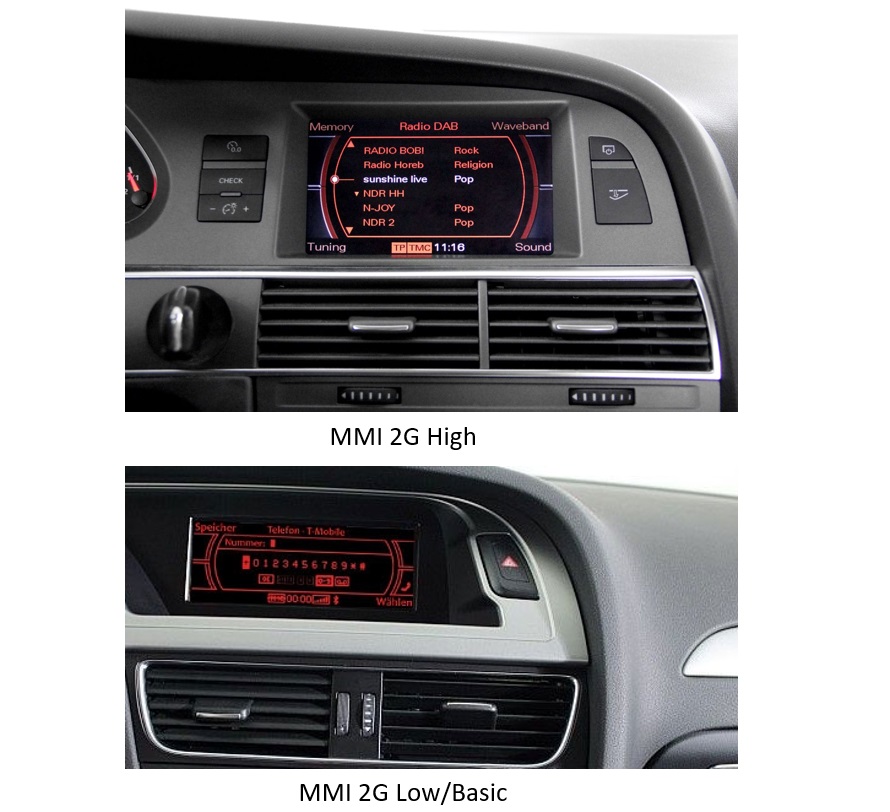

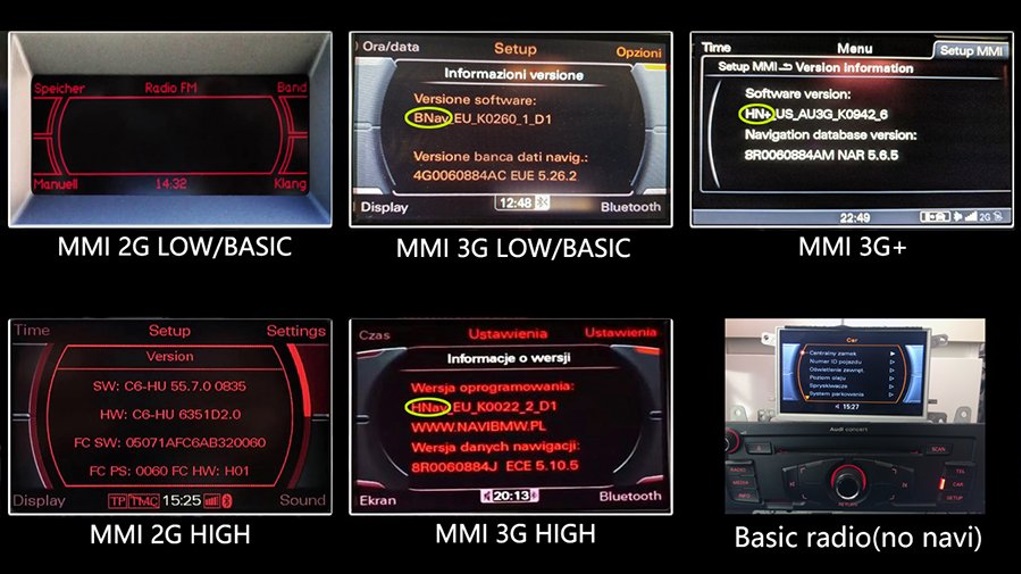

How to see which version MMI I have:

REQUIREMENT

OEM CD CHANGER	Must be removed
OEM BT CARKIT	When available put dipswitch 4 = ON
OEM MOST	The Optical input of the head-unit must is always activated, no need to code it.
SIMULATION	Interface simulates OEM CD changer
USB	Support USB stick version 1.1 – 2.0 (max 32GB) – MP3 & WMA files only – max 5 folders with 999 music files – support iD3 tag
SD CARD	Support micro SD card (max 32GB) – MP3 & WMA files only – max 5 folders with 999 music files – support iD3 tag
BLUETOOTH	Support audio streaming – support iD3 tag
INSTALLATION	We recommend that the installation will be performed by a qualified specialist

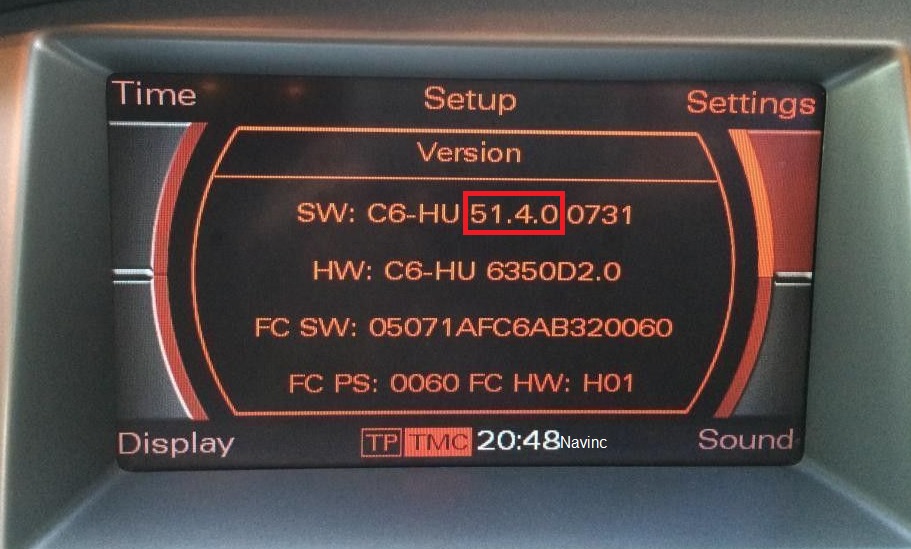

EXTRA NOTE	Firmware 51.4.0 (High) or 0410 (Basic) or higher

Firmware MMI High 2G - 51.4.0

Packaging

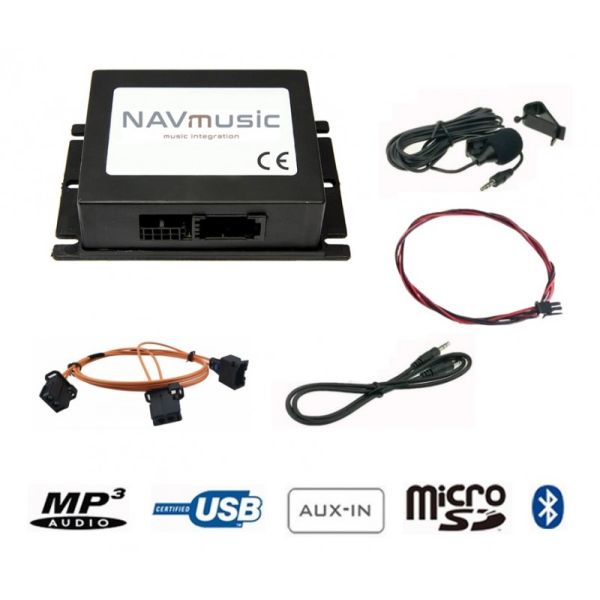

PACKAGE CONTENTS

The following is provided in the set:

BT3-AUDI-2G

Package:

Main AUDI module: 1x
Optical Y-cable: 1x
Power cable: 1x
Jack to Jack cable - 3.5mm: 1x
Microphone with bracket: 1x
Installation instructions: 1x
