DESCRIPTION

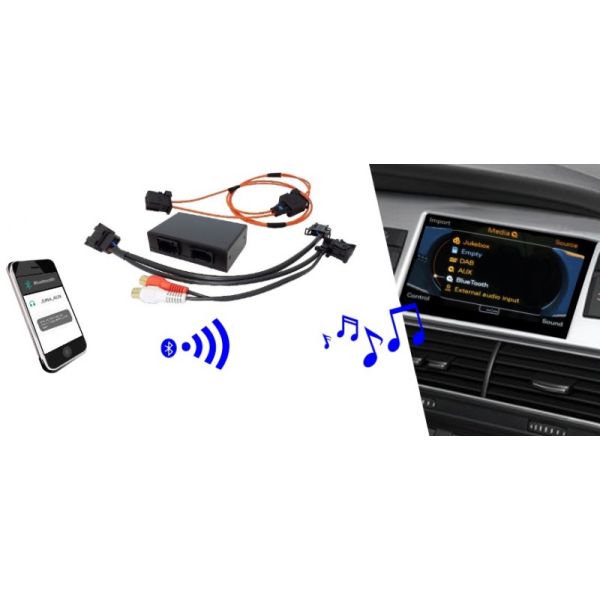

This interface enables to connect an external audio source, such as an iPod / MP3 player / DVD player / Telephone, to the MMI system of Audi. The audio input will be displayed as an optical AMI.
Input of the interface is 2x RCA (audio RCA left & audio RCA right) and integrated Bluetooth. The analog signal will be converted to an optical audio signal (fiber optic) which makes sure the audio quality is equal to an original CD changer.
Features:
- Connection via MOST (fiber optic)
- Audio Bluetooth streaming via A2DP
- Skip numbers via MMI button (Bluetooth)
- Display of track info
- Audio in stereo
- Activation of adapter via optical CD7 in changer menu
- Audio input: 2x cinch connection
PACKAGING
The following will be supplied:
- Audio interface BT2-AUDI-3G
- Installation manual
- 2 years warranty
- Invoice
- Installation manual
- 2 years warranty
- Invoice
NOTES
- Check at ‘Compatibility’ tab if your radio- or navigation system is suitable for this product.
- It is not possible to connect iPod and AUX source (via AUX input) at the same time. When using the AUX input you have to disconnect the iPod.
- Interface is CE and FCC certified.
Not available
COMPATIBILITY
CAR
This kit is compatible with the following models:
Audi
MMI 3G Basic / High
|
A4 (B8/8K/8H)
|
2009-2017
|
MMI 3G Basic & MMI 3G
|
|
A4 All road
|
2009-2015
|
MMI 3G Basic & MMI 3G
|
|
A5 (8T )
|
2009-2011
|
MMI 3G Basic & MMI 3G
|
|
A5 (8F )
|
2011-2017
|
MMI 3G Basic & MMI 3G
|
|
A6 (4F )
|
2009-2014
|
MMI 3G Basic & MMI 3G
|
|
A6 All road
|
2008-2015
|
MMI 3G Basic & MMI 3G
|
|
A7 (4E)
|
2010-2015
|
MMI 3G Basic & MMI 3G
|
|
A8 (4E)
|
2009-2015
|
MMI 3G Basic & MMI 3G
|
|
Q5 (8R)
|
2009-2017
|
MMI 3G Basic & MMI 3G
|
|
Q7 (4L)
|
2009-2015
|
MMI 3G Basic & MMI 3G
|
Suitable for the following radio- navigation systems*:
MMI 3G Basic (DVD navigation)
MMI 3G High (HDD navigation)
Not suitable:
MMI 3G Plus (60 GB HDD navigation)
MMI RMC
Remarks:
- Only in combination with above mentioned radio- and/or navigation systems
- Not in combination with Dension Gateway 500
- Original CD changer will be disabled
Not suitable for the following models:
Audi A1 2010 - 201>
Audi Q3 2011 - 201>
