DESCRIPTION
General
The best solution to make an analog audio input in the car digital.
Connect your smartphone via Bluetooth with the NAVmusic interface and the NAVmusic interface with the AUX input of your car and you can start streaming music via Bluetooth.
Features
- Auto connection
- Multi power connection (5V USB & Open wires)
- Multi audio connection (RCA & JACK)
- Volume output adjustment (via dipswitches)
- Working in combination with original Bluetooth carkit
- Bluetooth 5.0 BK3266
- 3 Year warranty
EXCLUSIVE INTERFACE FEATURES

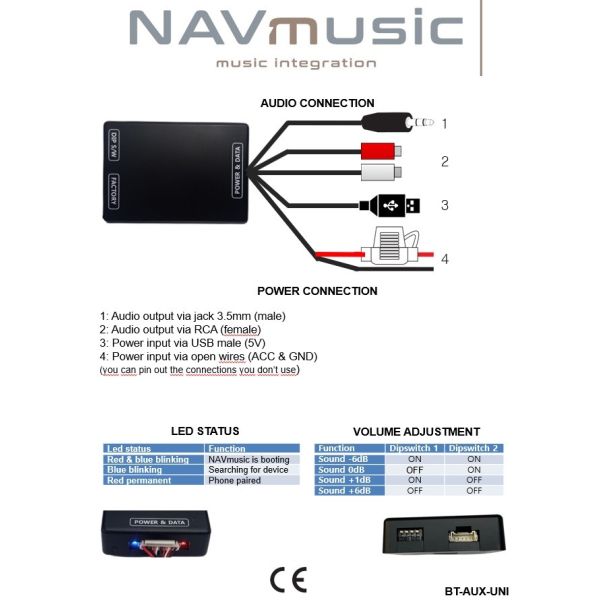

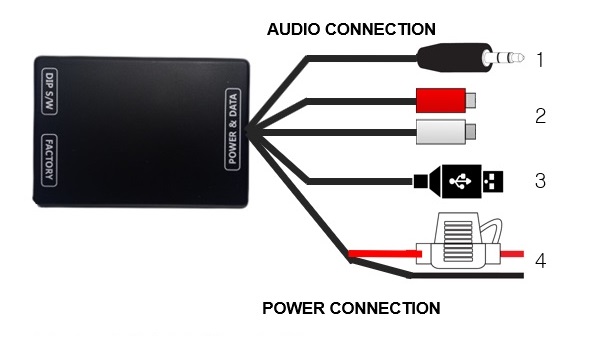

CONNECTIONS
The NAVmusic BT module has different way to connect to your radio- navigation system.
There are two audio output connections:
1: via cinch connectors (RCA-female)
1: via cinch connectors (RCA-female)
2: via jack 3.5mm (AUX connector - male)
There are two power connections:
3: via USB (male 5V) – plug and play
4: Open wires (ACC & GND) - so you can hide the module
You can pin out the connections you don’t use.
VOLUME ADJUSTMENT
The NAVmusic BT module also has a Volume option so you can fine tune the audio with your radio- navigation system.
The NAVmusic BT module also has a Volume option so you can fine tune the audio with your radio- navigation system.
|
Function
|
Dipswitch 1
|
Dipswitch 2
|
|
Sound -6dB
|
ON
|
ON
|
|
Sound 0dB
|
OFF
|
ON
|
|
Sound +1dB
|
ON
|
OFF
|
|
Sound +6dB
|
OFF
|
OFF
|
LED INDICATOR
The NAVmusic BT module has a LED indicator to indicate the status of the module.
|
Led status
|
Function
|
|
Red & blue blinking
|
NAVmusic is booting
|
|
Blue blinking
|
Searching for device
|
|
Red permanent
|
Phone paired
|
NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"
Not available
COMPATIBILITY
SMARTPHONE COMPATIBILITY
-Android phones
-Apple IOS phones
-Microsoft phones
CARS
All cars with AUX input (3.5mm jack)
AFTERMARKET HEAD-UNITS
All head-units with AV input (RCA) or AUX input (jack 3.5mm)
PACKAGE CONTENTS
The following is provided in the set:
Package:
- NAVmusic BT module: 1x
- Multi cable (HARETC0261): 1x
- Manual: 1x
- Service instructions: 1x
