CAM-VAG-T34N

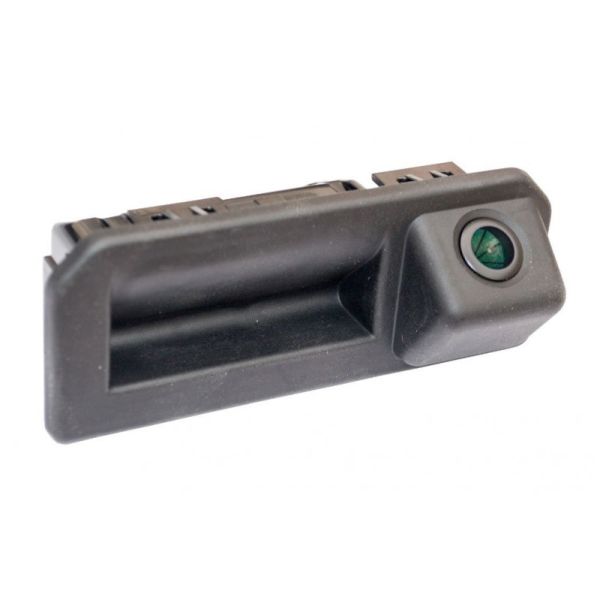

Boot handle camera Sony CCD VAG Q2 /A5 2017/Kodiaq - no lines (NTSC)
General:
This reversing camera is specially dedicated for Audi vehicles. The inconspicuous, robust camera with Sony CCD lens simply replaces the trunk release handle. Just easy remove the existing trunk release handle and replace it with the reversing camera. The camera is complete including plug and play cable kit which allows easy plug and play installation. The camera is waterproof according to the IP67 certification level.
Features:
- 1/3” SONY CCD lens
- 600 TV lines
- Lens angle 170 degrees
- Waterproof according to IP67 certification level
- Black Light Compensation
- Display in mirror image
- Automatic color correction
- Waterproof according to IP67 certification level
- Black Light Compensation
- Display in mirror image
- Automatic color correction
The following is provided in the set:
- Audi reversing camera NTSC
- Video extension cable 5 meter (RCA)
- Installation manual
- Invoice
- Warranty
Additional information:
- With a multimedia interface or video interface it is possible to connect the camera with the original navigation system, ask for the possibilities.
- Concerns a high-end SONY CCD lens, so no cheap CMOS lens
Technical features:
- IP rating: IP68 (Water proof)
- Image Sensors : Colour 1/3"SONY CCD
- TV System: NTSC
- Effective Pixels: NTSC 752x582
- Sensing Area: 4.9 × 3.7 mm
- Horizontal Resolution: 600TV Line
- Horizontal Sync. Frequency: 15.625 / 15.734 kHz
- Vertical Sync. Frequency : 50/60 Hz
- Video output: 1Vp-p,75Ohm
- Gamma Consumption: 0.45
- Auto Gain Control: Automatic
- Back Light Compensation: Automatic
- S/N Ratio: Better than 48dB
- Lens Angle: 170 ° (Degrees)
- Current Consumption: 150mA
- Power Supply: DC +12V (10%)
- Operating Temperature: -20 C to +70 C
- Storage Temperature : -40 C to +80 C
- Connection: RCA
- Image: Mirror
A5 (F5) facelift
05/2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
A6 (4K)
06/2018-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
A7 (4K)
02/2018-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
A8 (4N)
11/2017-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Q7 (4M)
09/2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Q8 (4M)
07/2018-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
E-tron (GE)
03/2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
ID.3 (E11)
2020-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
ID.4 (E21)
2020-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
A5 (F5)
2017-20..
- Note: also facelift
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Q2
11/2017-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Q5
11/2017-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Kodaiq
2016-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Superb
2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
ID.5
2020-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
ID.6
2020-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Taigo
2022-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Kamiq
2020-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
A1
2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Fabia
2015-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Koroq
2018-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Octavia
2020-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Scala
2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Rapide
2013-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Arona
2018-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Ateca
2016-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Ameo
2017-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Passat
2016-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Polo
2013-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
T-Cross
2019-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Touareg
2018-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Q3
11/2017-20..
- Signal
CVBS - CVBS signal
NTSC - Parking line wire
- Mirror wire
- Extension cable included
Compatible with:
Audi A3 (2019+)
Audi A5 (2017+)
Audi Q3 (2019+)
Audi Q2 (2017+)
Audi Q5 (2017+)
Skoda Kodiaq (2016+)
Skoda Superb 2019>
Volkswagen T-cross
Volkswagen ID4
Volkswagen Taigo 2022
* Check before you order the camera for the compatibility on the tab “Compatibility” or the model and the measurements of the camera match with the license plate light.
Remarks:
- The license plate lights of the above mentioned car models may vary.
- Check before you order the camera for the compatibility on the tab “Compatibility” or the model and the measurements of the camera match with the license plate light.
- Check by use of the picture if the mounting is the same as with the license plate light.
Measurements:
The dimensions are external. The camera has the following dimensions.
- Length: mm
- Width: mm
