DESCRIPTION
Heavy duty HD camera; Front/Rear/Side; 1280x960 (NTSC)
Features
- 1/3.2″ SONY CMOS HD Color Sensor
- Vibration & impact resistant housing
- All view direction applicable (via rotary key)
- IP69K Waterproof rating
- 150 degrees lens (Wide field of view)
- WDR (Wide Dynamic Range)
- High End Night View (0.0Lux) with 8* LEDs
- IP69K Waterproof rating
- 150 degrees lens (Wide field of view)
- WDR (Wide Dynamic Range)
- High End Night View (0.0Lux) with 8* LEDs
- Anti-glare & ghost
- Voltage range (5V-32V)
- Extreme Temp. Durability
- Extreme Temp. Durability
Operating: -30°C ~ 60°C
Storing Temp. : -40°C ~ 80°C
Storing Temp. : -40°C ~ 80°C
- Din metal screw lock
- Front/Rear/Side mounting
- CE-mark
- FCC-mark
- 2 Year warranty & Support
EXCLUSIVE CAMERA FEATURES
Highest Quality lens
High End 1/3.2″ SONY CMOS HD Color Sensor with 1280*960 resolution
IR leds
The camera is equipped with 8* IR nightvision leds.
-Auto ON/OFF by a brightness detecting sensor
-Progreesive Brightness adjustment
-Wider & Longer illuminating range by a patented designed front glass

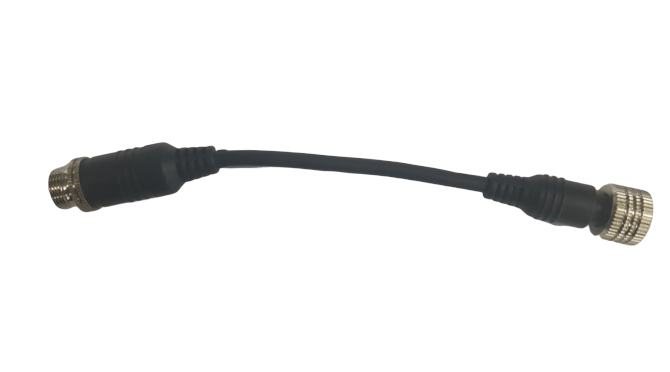

Mirror & Unmirror adapter
The camera is equipped with an mirror & Unmirror adapter
- adater not installed is Unmirror view
- adapter installed is mirror view
All View Direction
All view direction applicable (Left, Right, Back or Inner backward)
- Front / Rear / Side mounting

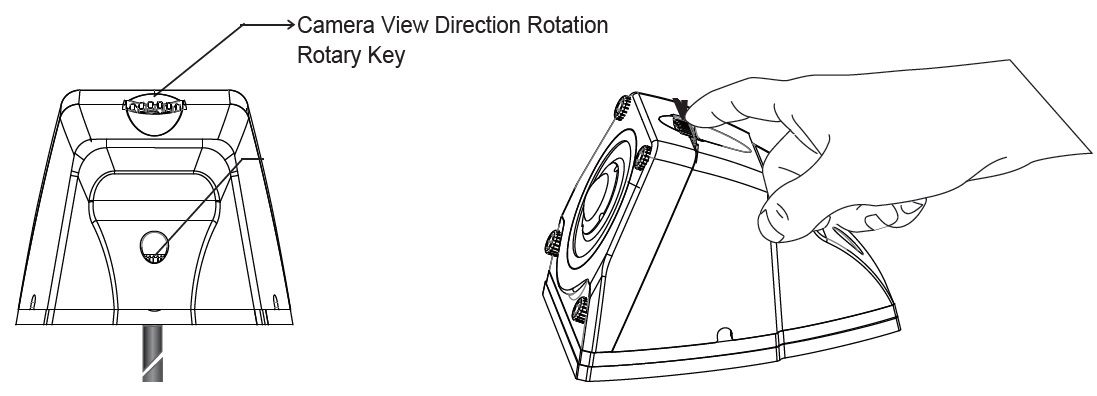

Rotary Key
All view direction applicable (Left, Right, Back or Inner backward) just by rotating the camera via the Rotary Key

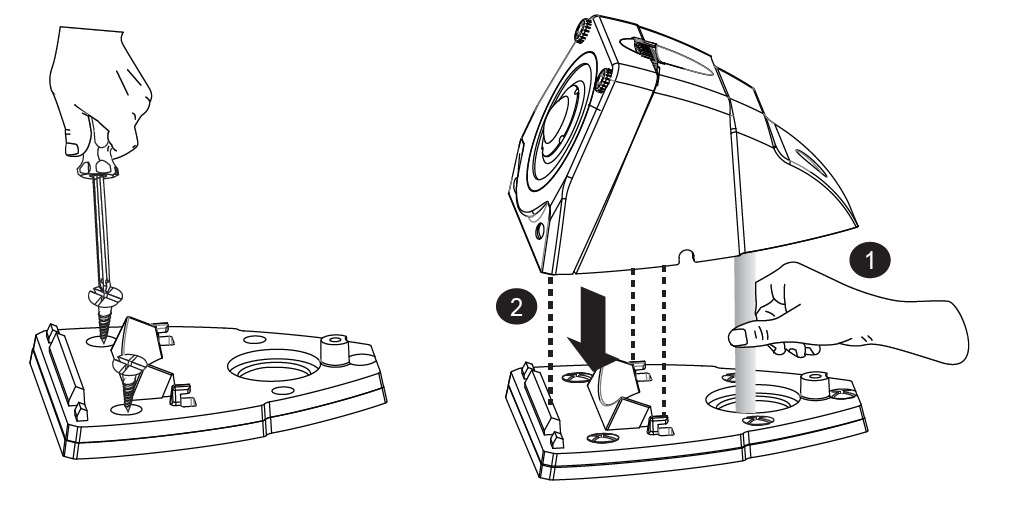

Easy fix
Easy installation via fixing plate.
Metal screw lock
Water- & shock proof 4-pins mini din screw lock connector.
Ignition proof (+15)
It is possible to connect the powersupply to an ignition feed (+15), because we use the highest quality camera.
In this way you are able to watch the camera also in DRIVE gear or via manual selection.
NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check also the other tabs for "Compatibility" - "Package contents" - "Product specifications"
LEGAL NOTICE
Please check before purchase if it is aloud to install this camera and it wont affect your MOT.
Not available
COMPATIBILITY
Universal use
Only for rear installation
NOTES
- CVBS signal is NTSC
PACKAGE CONTENTS
The following is provided in the set:
CAM-HD-Q6HD
Package:
-
HD camera with metal screwlock connector: 1x
-
Screw set: 1x
-
Rubber pad with self-adhensive tape: 1x
-
Installation instructions: 1x
