Maestro 2.0 iPod/USB/AUX interface with ID3-tag

General

With the Maestro interface it is possible to connect three selectable audio sources with the original radio/navigation system. The selectable sources are: Apple iPod/iPhone input, USB input & AUX input via 3,5mm jack connection. The sources can be operated via the included remote controller or through the original steering wheel controls *. Additionally, the interface also includes RDS text display on the display of the original radio and/or navigation system.

Audio of the iPod/iPhone/USB/AUX will be played in high quality through the original sound system of the vehicle. The quality of this product is similar to the original CD changer or even better.



*See tab “Compatibility”



Features:

# USB input for playing MP3/AAC/WMA files via USB device or HDD

# iPod/iPhone/iPad  connection including charge function

# User menu displayed on radio display

# Voice controlled interface menu

# Control iPod/iPhone/iPad/USB  via remote controller

# Control iPod/iPhone/iPad/USB via steering wheel controls of the vehicle*

# ID3 text display of iPod/iPhone/iPad/USB interface via RDS display

# 3.5mm jack input for playing files from MP3 player

# 3.5mm jack input for voice guidance of portable navigation via radio system

# Automatic stop-play function when switching from interface to radio

# With retention of the original CD changer

# Audio audible in high quality via original sound system

# No programming via the dealer necessary





SPOTIFY:

With this interface it is possible to music that is played through Spotify on the iPhone, iPod & iPad, via the original buttons of the radio, steering wheel control (if present) and via the display of the iPhone, iPod & iPad to operate. A complete music collection in your car of more than 13 million songs. Spotify can be downloaded via iTunes.



Control Options Spotify;

-Next and previous song

-Volume +/-



USB:

Input for the connection of an USB device or hard disk for playing of MP3/AAC/WMA files.

- Title and number display in RDS radio display

- Random function

- Repeat function

- Back to root

- Directory & number skipping

- Support of MP3/AAC/WMA files on FAT & FAT32 system files

- Controls via remote controller or steering wheel controls*



See table for interface menu

Table





iPOD/iPHONE/iPAD

Input for the connection of iPhone, iPod & iPad. The interface is compatible for Apple 30-pins & Lighting to USB dock cable. Control functions are:



See table for interface menu

Table





AUX IN:

Audio

External AUX input via 3.5mm jack connection for the connection of external audio sources.

- Auto OFF function after 20 seconds

The interface recognizes audio input via jack. When there is no audio signal during 20 seconds the interface will switch of automatically.



VoiceOver

VoiceOver function for navigation systems

If a (portable) navigation system is connected via the 3.5mm jack connection the interface will switch on automatically only when the navigation has voice guidance. The interface can activate the VoiceOver function when the iPod or USB mode is switched on.



See table for interface menu

Table





REMOTE  CONTROL:

The interface is equipped with a remote controller to control the connected sources and the interface. The remote control works via frequency making an IR receiver unnecessary. The controlfunctions include:

- Skipping folders and tracks

- Volume control

- Play/pause

- Navigation through the menu of the interface

- Interface enable/disable

See table for control functions:

Table





STEERING WHEEL CONTROL

The interface can be controlled via the original steering wheel controls. The controlfunctions include:

- Skipping folders and tracks

- Volume control

- Play/pause

- Navigation through the menu of the interface

- Interface enable/disable



See table for control functions:

Table



- Check at the tab “compatibility” on top of this page if your radio or navigation system is suitable for this product.

- Steering wheel controls only possible with car models as included in the compatibility list (see tab compatibility).





CAN-BUS: & GM-lan

The protocols of the carmodels are in all modules preloaded, as a result controls via original steering wheel controls is available for over 200 car models. The interface is suitable for CAN-BUS, GM-lan and resistive protocols.

-CAN BUS & GM-lan vehicles are automatically recognized.





RDS:

- The interface has a high quality FM-modulator with RDS text generator.

- Audio of the iPod/iPhone/USB/AUX will be played in high quality via the orginal audio system of the vehicle.

The quality of this product is similar to the original CD changer or even better.





ID3 tag:

The RDS text generator makes it possible to display texts up to 64 characters. Display of:

- Titles and directories (with iPod & USB)

- Interface menu

- Playlists (with iPod)





VOICE MENU:

When the interface menu will be selected this will be visible on the RDS radio display and also will be audible via the speakers.

- voice controlled interface menu

- Interface menu display via RDS screen of the radio

- Different laguages available: English, Spanish, Frensh, German, Italian, Dutch





See table for interface menu

Table





UPDATE:

Maestro can be updated via the USB port.

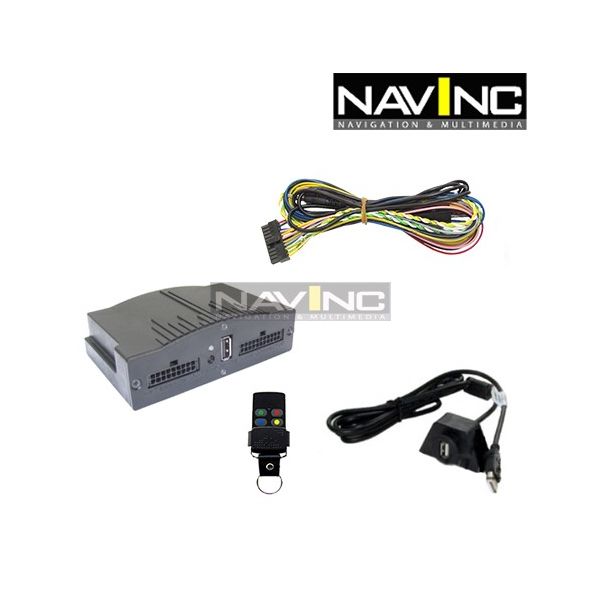

The following is provided in the set:

- NavInc Maestro interface

- Power supply cable

- USB dock cable

- Reset tool

- Remote controller

- Installation- and user manual

- Warranty

- Invoice





Optional:

1: Choose the right antenna cable adapter:

- GEEN - you dont need the antenna adapter

- MAES-RDSET - DIN antenna + ISO connection + Dual fakra antenna connection

- MAES-RD31 - DIN antenna connection

- MAES-RD41 - ISO antenna connection

- MAES-RD51 - Fakra antenna connection

- MAES-RD61 - Dual fakra antenna connection





Additional information

- Check at the tab “compatibility” on top of this page if your radio or navigation system is suitable for this product.

- At this tab you will also find information about the support of steering wheel controls.

- Choose the right optional antenna cable adapter.

- Choose the right optional Apple USB adapter





Product specificaties:

- Interface iPod / AUX-IN / USB

- Sizds BxHxL - 75mm x 35mm x 115mm
