RC-BMW-NBT

Rear & Front camera interface BMW NBT ID4 & ID5 (NTSC)

Call for Price
Datasheet Where to buy
DESCRIPTION

General
The NavInc NAVconnect interfaces allow for connecting video sources to the original iDrive ID4 & ID5 system of BMW.
The interface is equipped with various options such as; 1* Front camera input & 1* Rear camera input.

Example video


Features
- 1x Rear camera input
- iPAS (dynamic parking lines)
- 1x Front camera input (with auto switch OFF)
- Original button support
-  PiP (Picture in Picture for original parking sensors)
- LVDS input (APPplay & NAVplay)
- 2 Year warranty & Support


EXCLUSIVE INTERFACE FEATURES
Features:
- Reverse Camera input
- Front camera input
- Image retention while driving
- Adjustable parking lines
- OSD menu

Activation via OEM

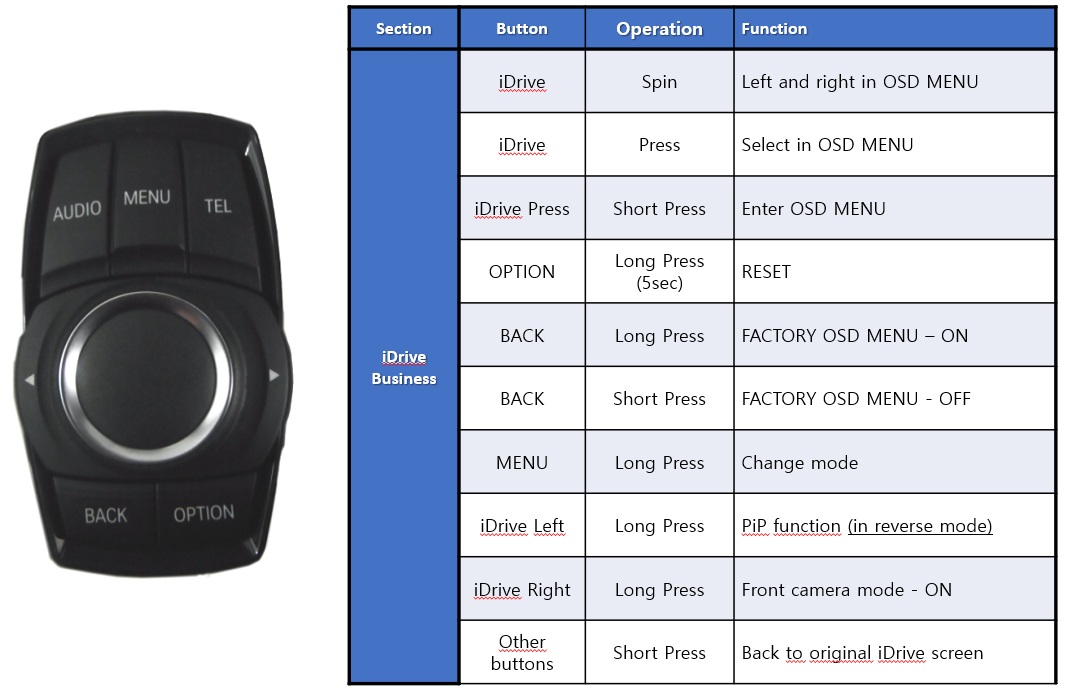

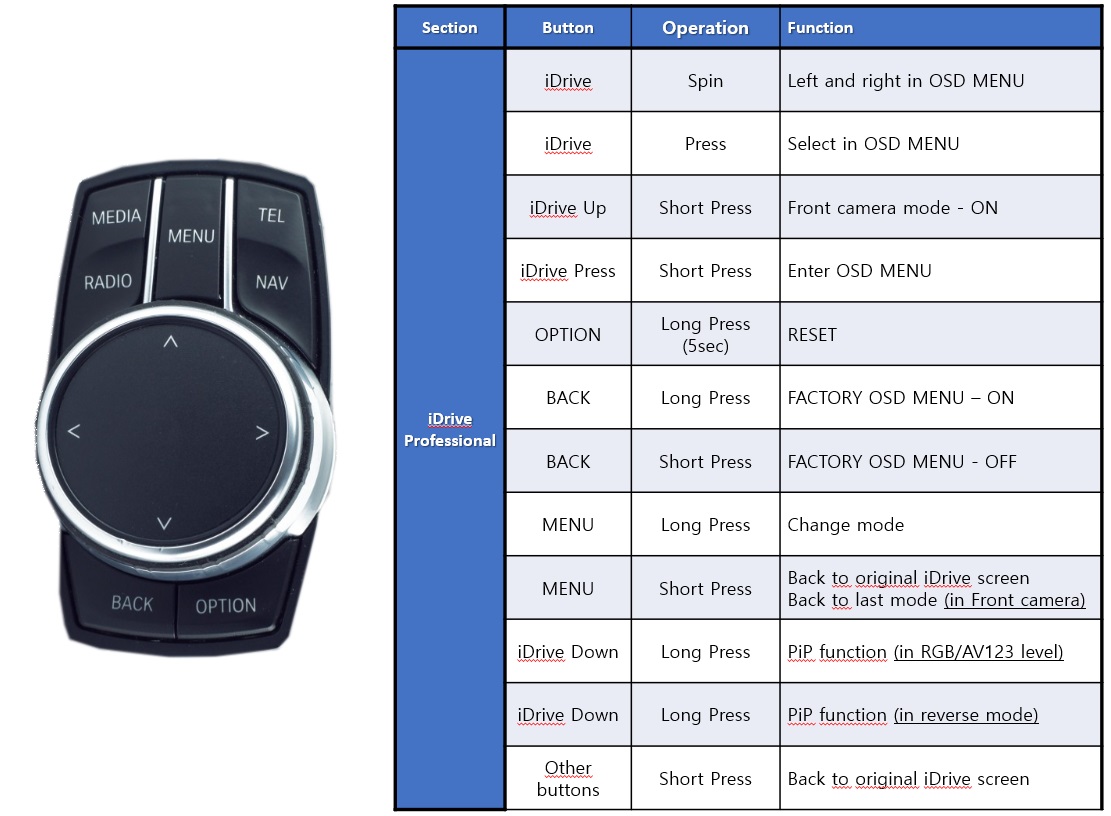

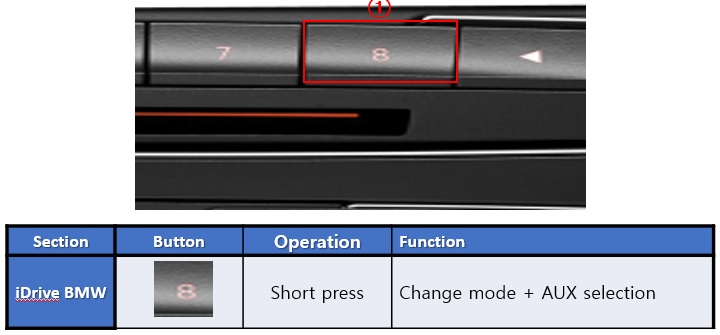

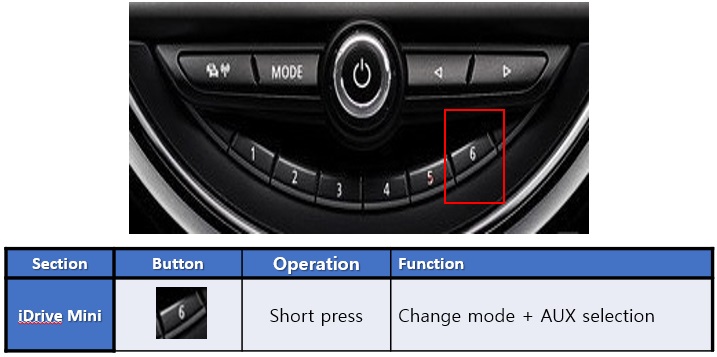

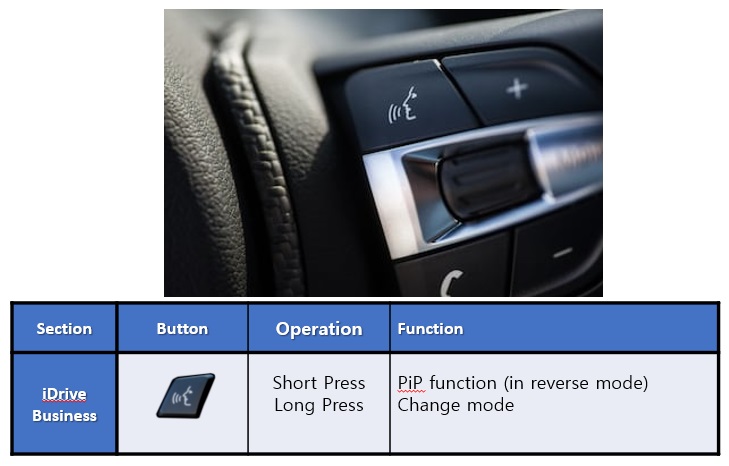

Activation interface via original button:




CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.

Picture In Picture (PIP)
Camera with Picture in Picture of the Parking assist




Intelligent Park Assist System (IPAS)
The interface have also the Intelligent Park Assist System (iPAS). With this function the guidelines will respond on the steering wheel position. The guide lines are adjustable horizontal and vertical via the interface OSD menu.

Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec

NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"


LEGAL INFORMATION
The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.
Compatibility

1-serie (F20/F21)

2011-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

2-serie (F22/F45)

2014-2016

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

3-serie (F30/F31/F32/F33)

2011-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

3-serie GT

2014-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

4-serie

2014-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

5-serie (F10/F11)

2012-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

5-serie GT (F07)

2012-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

6-serie (F12/F13)

2012-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

6-serie GC

2012-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

7-serie (F01/F02)

2012-2016

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

X3-serie (F25)

2012-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

X4-serie (F26)

2014-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

X5-serie (F15)

2014-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

X6-serie (F16)

2014-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

i3-serie

2014-2017

  • Note: NBT computer under back seat, PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No

i8-serie

2014-2017

  • Note: PiP = splitscreen
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    APIX - HSD+2
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    iDrive NBT (6.5"/7.0"/8.8"/10.25")
  • Coding needed
    No
Extra Information
REQUIREMENT

AUDIO OUTPUT

The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from an external AV source.

CVBS

Only compatible with NTSC sources.

LVDS

Compatible with NAVplay & APPplay module

SCREEN

Interface is compatible with 6.5”, 8.8” & 10.2”

FRONT CAMERA

The front camera input will automatically switch after leaving the reverse gear.

You can set the display time in seconds via the OSD menu (1-15 sec).

It is also possible to select the FRONT camera input manually

OEM REAR CAMERA

The interface does not switch back automatically to the OEM rear camera input when the reverse gear is engaged.

GUIDELINES

iPAS & Static lines are available via the interface OSD menu

PIP

We recommend that the installation will be performed by a qualified specialist

REAR SELECT CAMERA INPUT

Interface will respond on CAN for cars with auto gearbox. When manual gear box please use the rear detection wire.

INSTALLATION

We recommend that the installation will be performed by a qualified specialist
Packaging
PACKAGE CONTENTS
The following is provided in the set:

RC-BMW-NBT
Package:
  1. Power cable (HPOWER0157 K): 1x
  2. Multi cable (HAVCAB0045 K)): 1x
  3. LVDS cable (HLCDCA0035): 1x
  4. Rear cable (HARETC0002): 1x
  5. Interface module: 1x
  6. Manual: 1x
  7. Service instructions: 1x
