main product photo
RC-MB-NTG45CT

Rear & Front camera interface Mercedes Comand NTG4 Online

Call for Price
Datasheet Where to buy
DESCRIPTION

General
With the NAVconnect camera interface it is possible to connect an aftermarket Front & Rear camera to the original Comand NTG4 Online system of Mercedes (5.8" & 7.0").


Features
- 1x Rear camera input
- 1x Front camera input (with auto switch OFF)
- Auto switch to rear camera input when car is in reverse
- Auto switch to front camera input when leaving reverse gear
- iPAS parking lines (moveable grid lines)
- Adjustable parking lines via OSD menu
- Picture in Picture overlay function of the original parking sensors
- OEM steering wheel button support (to activate front camera input manually)
- Support NTSC & PAL video signals
- Support Comand & Audio20 (Becker)
- 3 Year warranty & Support

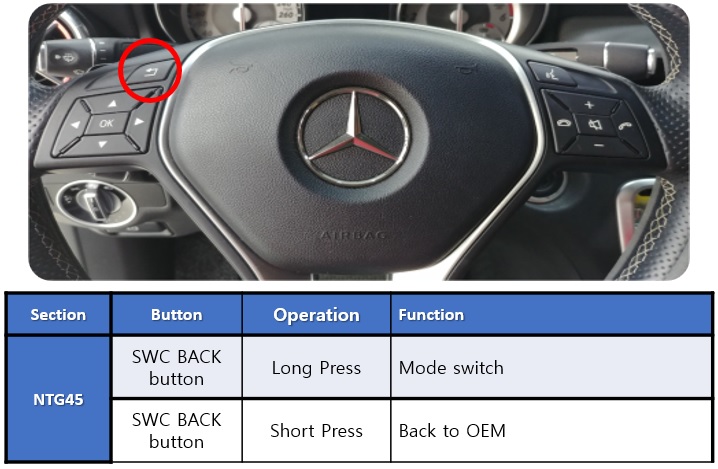

OEM BUTTON



CAMERA FEATURES
Rear camera input with Parking guidelines
Rear camera input with parking guidleines option.

The guidelines makes it much easier to determine the distance to the object you are driving towards.
The guidelines are adjustable horizontal as well as vertical so the lines can be adjusted to the car.


Front camera input
Front camera input which will be selected after leaving the reverse gear.
Via the OSD menu you can select show time:
3 sec
5 sec
10 sec
15 sec

Picture in Picture (PiP)
Picture in Picture overlay function of the original parking sensors

NOTES
- We recommend that the installation will be performed by a qualified specialist
- Check the other tabs for "Compatibility" - "Package contents" - "Product specifications"


LEGAL INFORMATION
The driver ofthe vehicle should not be inferred from the motion images. In many countries, watching movies while driving is prohibited. Therefore we accept no responsibility for material or personal injuries, directly or indirectly, due to installation of the interface modules.

Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the navigation system. The NavInc interfaces enable the possibilities to connect different Audio/Video sources to the navigation system.

Manufacturers create adjusted software and hardware versions, options and enhancements which ensures that the compatibility of the products cannot be guaranteed 100%. Compatibility lists are based on customer feedback and experiences and will constantly be updated for optimal customer support.
Compatibility

A Class (W176)

2012-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

B Class (W246)

2012-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

C Class (W204)

2011-2014

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

C Class Coupe (C204)

2011-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

CLA Class (C117)

2013-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

CLS Class (C218)

2010-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

CLS Class Shooting

2012-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

E Class (C207 Coupe)

2011-2016

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

E Class (W212)

2011-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

GLA (X156)

2014-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

GL-Class (X166)

2012-2016

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

GLK Class (X204)

2011-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

G-model (G463)

2012-2016

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

ML Class (W166)

2011 -2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

SL Class (R231)

2012-09/2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

SLK Class (R172)

2011-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

A Class (W176)

07/2012-08/2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

C Class (W204)

03/2011-10/2014

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

C Class Coupe (C204)

06/2011-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed

CLA Class (C117)

01/2013-2015

  • Note: Audio20 (5.8")_Audio20 + Becker (5.8")_Comand (7")
  • Rear camera input
  • Front camera input
  • RGB input
  • LVDS input
  • HDMI input
  • A/V input
  • A/V output
  • Activation
    Switch & OEM
  • Signal
    LVDS - HSD 4P
  • Open head-unit
  • CVBS signal
    NTSC
  • Guide lines
  • I-DRV
  • Picture in Picture (PiP)
  • iPAS lines
  • R-gear select
    Lamp & CAN
  • Touch support
    No
  • Head-unit
    Comand Online & Audio20 (Becker)
  • Coding needed
Extra Information
REQUIREMENTS


AUDIO OUTPUT

The interface inserts ONLY video signals into the infotainment. It is essential to have an Aux-in, when using audio from an external AV source.

CVBS

Only compatible with NTSC sources.

LVDS

Not available.

SCREEN

Interface is compatible with 5.8” & 7” monitors

FRONT CAMERA

The front camera input will automatically switch after leaving the reverse gear.

You can set the display time in seconds via the OSD menu (1-15 sec).

It is also possible to select the FRONT camera input manually

OEM REAR CAMERA

The interface does not switch back automatically to the OEM rear camera input when the reverse gear is engaged.

GUIDELINES

iPAS & Static lines are available via the interface OSD menu

iPAS

iPAS option is available (moveable grid lines)

PIP

PiP option is available for original parking sensor overlay  (Picture in Picture)

REAR SELECT CAMERA INPUT

When interface won’t respond on reverse CAN, please use the 12V reverse detection wire (grey wire)

INSTALLATION

We recommend that the installation will be performed by a qualified specialist

NOTE


Packaging
PACKAGE CONTENTS
The following is provided in the set:

Package:

  1. Power cable (HPOWER0291 K): 1x
  2. J by J cable (HARETC0390): 1x
  3. LCD cable (HLCDCA0017): 1x
  4. Remote (REMOTE0001): 1x
  5. IR eye (HIRCAB0002) 1x
  6. Interface module: 1x
  7. Manual: 1x
